Indoor
BRITEONC
Commercial Standard

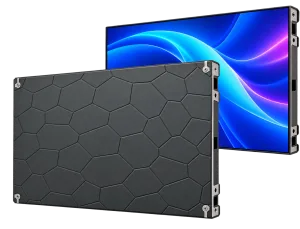

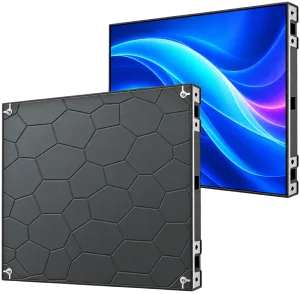

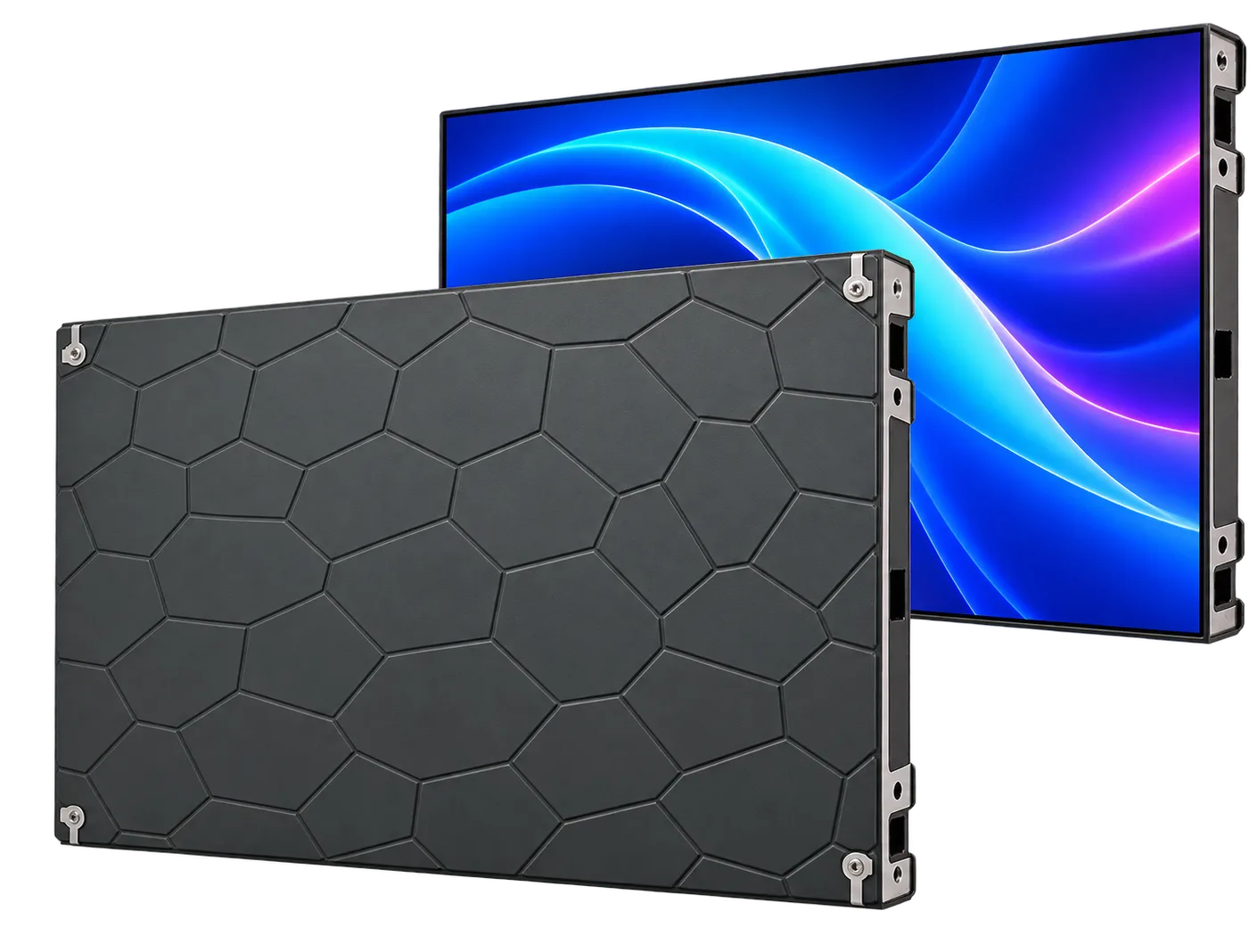

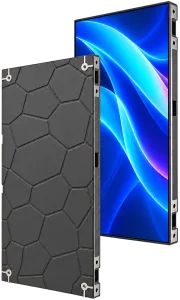

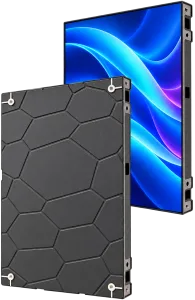

320×160mm module4 cabinet configurationsSchools · Public institutions · Places of worship
Specifications
| Model | BRITEON-C320- P1.25 | BRITEON-C320- P1.53 | BRITEON-C320- P1.86 | BRITEON-C320- P2 | BRITEON-C320- P2.5 |
|---|---|---|---|---|---|
| Pixel pitch (mm) | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm |
| Module size (mm) | 320×160 | ||||
| LED chip | 1010 | 1212 | 1515 | 2121 | |
| Driver IC | ICND1065L / ICND1065S | ||||
| Scan mode | 64 | 52 | 43 | 40 | 32 |
| Refresh rate | 3840 / 7680 | ||||
| Brightness (nits) | 600 | 800 | |||
| Cabinet material | Die-cast aluminum | ||||
| Max. power | 130W | ||||
